What is an Annular Cutter?

Has your workshop been struggling with inefficient hole drilling? Traditional drill bits waste material and time. Many fabricators face this daily frustration, but there’s a better solution.

An annular cutter is a specialized drill bit that cuts only the outer edge of a hole, creating clean, precise circular cuts in metal. It removes less material and works faster than conventional drill bits.

While regular drill bits chew through entire surfaces, annular cutters¹ offer smarter drilling. Let’s explore how this tool works and why it’s essential for metal fabrication².

How are Annular Cutters Sized?

Ever ordered the wrong size cutter and wasted money? Understanding sizing prevents this costly mistake.

Annular cutters are sized by diameter (from 12mm to 150mm) and cutting depth (typically 30-100mm). The shank must match your drill machine’s arbor size (usually 19mm or 32mm Hex).

Key Size Considerations

Three factors determine the right annular cutter size:

1. Hole Diameter Needs

   • Measure the required hole size
   • Add 0.1mm tolerance for bolt clearance

2. Material Thickness

   • Standard cutters handle 12-55mm depth
   • Extended versions available for thicker materials

3. Machine Compatibility	Machine Type	Recommended Shank Size
   Portable Magnetic Drills	19mm Hex
   Industrial Drilling Rigs	32mm Hex

At our factory, we produce custom-sized cutters³ for special applications. Unlike competitors, we offer precise diameter matching⁴ down to 0.01mm tolerance⁵.

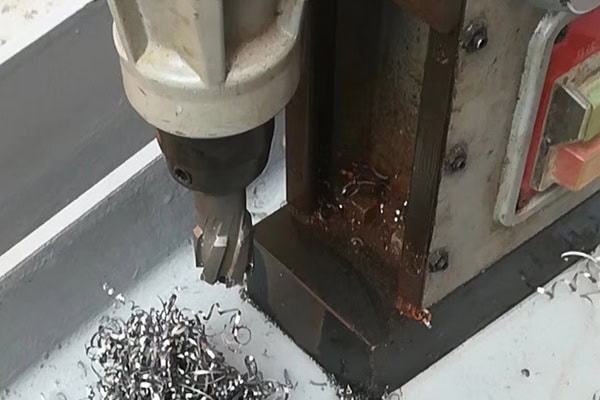

How to Use a Magnetic Drill Bit?

Watching metal chunks fly everywhere? Poor drilling techniques cause this dangerous mess.

Secure the magnetic drill on clean, flat metal surfaces. Insert the cutter, apply steady pressure, and use cutting fluid for best results. Always wear safety goggles.

Step-by-Step Operation Guide

1. Preparation

   • Clean the metal surface (rust/dirt affects magnetic grip)
   • Mark hole center with a center punch

2. Machine Setup

   • Position drill directly over mark
   • Engage magnet (verify holding power)
   • Add cutting fluid reservoir if automatic

3. Cutting Process

   • Start at medium RPM (150-300)
   • Apply firm, even pressure
   • Clear chips frequently

Common mistakes we see customers make:

• Skipping lubrication (reduces cutter life by 60%)
• Excessive pressure (causes premature wear)
• Wrong RPM settings (affects hole quality)

How Long do Annular Cutters Last?

Tired of replacing worn-out cutters every week? Quality makes a huge difference in lifespan.

Premium annular cutters last 300-500 holes in mild steel. Cheaper versions fail after 50-100 holes. Proper maintenance can double the tool’s working life.

Maximizing Cutter Longevity

Several factors affect cutter lifespan:

Our factory tests show:

• High-speed steel (HSS) cutters last 30% longer than carbon steel
• Cobalt-alloy versions withstand higher temperatures
• Titanium nitride coating adds 50+ extra holes

For procurement managers, investing in quality cutters reduces replacement frequency⁶ Ve downtime costs⁷.

Who Uses Annular Cutters?

Seeing limited applications for this tool? Many industries rely on annular cutters daily.

Construction crews, shipbuilders, and manufacturing plants use annular cutters for precise metal holes. Even elevator technicians and bridge builders depend on them for structural work.

Industry-Specific Applications

1. Construction Sector

• Steel beam drilling for I-beams
• Anchor bolt holes in concrete
• Prefabricated structure assembly

2. Manufacturing Plants

• Assembly line machinery
• Equipment mounting points
• Conveyor system installations

3. Specialized Fields

• Shipbuilding: hull plating
• Energy: wind turbine towers
• Transportation: rail track maintenance

We supply annular cutters to all these industries. Our most popular orders come from structural steel contractors⁸ needing consistent performance⁹.

HSS Annular Cutters for Slugger Mag Drills

Hardness re-testing (HRC)

TCT Annular Cutters for Slugger Mag Drills

Microstructure depth analysis

HSS vs. TCT Annular Cutters for Slugger Mag Drills

Precision testing

Çözüm

Annular cutters revolutionize metal drilling with efficiency and precision. From sizing to maintenance, proper use maximizes their potential across industries. Quality matters for long-term cost savings.
