Concrete Hammer Drill Bit
Carbide Tipped Masonry Drill Bit for Concrete Brick Masonry Drilling With Triangle Shank Copper Plated L Flute

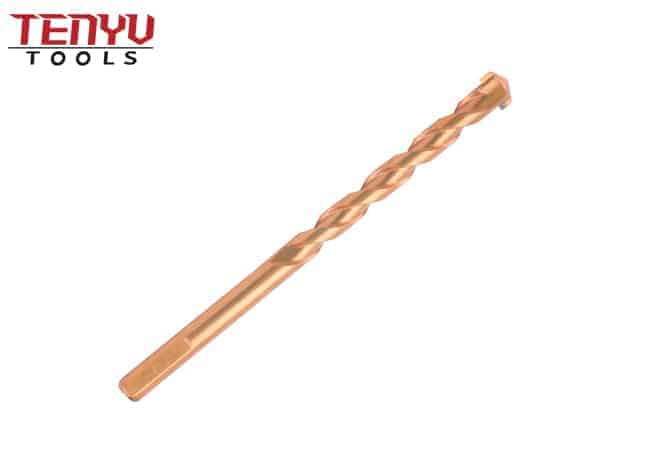

Triangle Shank Copper Plated L Flute Carbide Tipped Masonry Drill Bit for Concrete Brick Masonry Drilling
1. Body Material: Carbon Steel with Heat Treatment
2. Tip Material: Tungsten Carbide
3. Process: Milled Flutes and Welded Tip (Auto Welded Tip is available )
4. Shank: Triangle Shank
5. Flute Type:L Flute
6. Surface Finish: Copper Plated
- Product Details
- Factory
- Material
| Product description | |
| Product Name | Concrete Masonry Drill Bits R Flute Carbide Tipped for Brick Masonry Drilling With Green & Bright Surface |
| Tip Material | Tungsten Carbide |
| Body Material | Carbon Steel with Heat Treatment |
| Process | Milled Flutes and Welded Tip |
| Flute Type | R Flute (L flute, U flute, S4flute, Fast spiral flute are available) |
| Shank | Round Shank (Quick change hex shank, Three-Flat shank, Double R hex shank, Tapcon shank, Flexible shank, Extra-long shank are available) |
| Surface Finish | Copper Planted(Sandblasted, Chrome Plated, Zinc plated,Black & Bright are available ) |
| Package | One Piece in One PVC Pouch Or In One PVC Tube or PVC Double Blister or Skin Card |
| Feature | 1. Carbide-tipped tools feature cutting edges of carbide for wear resistance and a steel shank for toughness. |
| 2. Spear point carbide tip shape design for extreme drilling rough tile, ceramics, porcelains and glass, etc. | |
| 3. Round shank is designed for use in power drills, drill presses, and boring machines. | |
| 4. Copper braze material gives high heat resistance for reduced tip loss. | |
| 5. Can not be used on hammer mode, for use with rotary drills only. | |
| 6. Best result with lower rpm and good cooling with water, vinegar and turpentine. | |
| Product Size | |||||
| Diameter | Flute Length | Overall Length | Diameter | Flute Length | Overall Length |
| mm | mm | mm | Inch | Inch | Inch |
| 3 | 30 | 70 | 1/8″ | 1-1/2″ | 3″ |
| 4 | 40 | 75 | 5/32″ | 4″ | 6″ |
| 5 | 50 | 85 | 3/16″ | 2″ | 3-1/2″ |
| 6 | 60 | 100 | 3/16″ | 4-1/2″ | 6″ |
| 7 | 60 | 100 | 1/4″ | 2″ | 4″ |
| 8 | 80 | 120 | 1/4″ | 4″ | 6″ |
| 9 | 80 | 120 | 1/4″ | 8″ | 12″ |
| 10 | 80 | 120 | 5/16″ | 2-1/2″ | 4-3/4″ |
| 11 | 90 | 150 | 5/16″ | 4″ | 6″ |
| 12 | 90 | 150 | 5/16″ | 8″ | 12″ |
| 13 | 90 | 150 | 3/8″ | 4″ | 6″ |
| 14 | 90 | 150 | 3/8″ | 8″ | 12″ |
| 15 | 90 | 150 | 7/16″ | 4″ | 6″ |
| 16 | 90 | 150 | 1/2″ | 4″ | 6″ |
| 17 | 100 | 160 | 1/2″ | 8″ | 12″ |
| 18 | 100 | 160 | 5/8″ | 3″ | 6″ |
| 19 | 100 | 160 | 5/8″ | 8″ | 12″ |
| 20 | 100 | 160 | 3/4″ | 3″ | 6″ |
| 21 | 100 | 160 | 3/4″ | 8″ | 12″ |
| 22 | 100 | 160 | 7/8″ | 3″ | 6″ |
| 23 | 100 | 160 | 7/8″ | 8″ | 12″ |
| 24 | 100 | 160 | 1″ | 3″ | 6″ |
| 25 | 100 | 160 | 1″ | 8″ | 12″ |
| * Custom-tailor would be available against customers’ requirements | |||||
Factory
Concrete Masonry Drill Bits | Masonry Drilling | Power Tools
1. Applicated in Bricks, Concrete, Ceramic Tile, Bricks, Granite, Stones.
2. Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling. increases strength and durability.
3. Premium carbon steel with heat treatment improves core strength for maximum durability and extended life.
4. Copper braze material gives high heat resistance for reduced tip loss.
5.R flute ensures fast, efficient removal of drilling dust and debris to increase speed and prevent clogging.
6.Round shank for using in corded and cordless rotary drills.
1. Widen teeth segments for quick material removal
2. Optimized bond and formula for longer life
3. Optimized segment height minimizes dust and debris
4. Surface finishing on concrete, screed, and natural stone
Concrete Masonry Drill Bits | Masonry Drilling | Power Tools
1. Suitable for grinding machines and angle grinders
2. Other sizes are available upon your request.
3. We have a strict quality control system, to ensure quality stable.
4. The inspection report provided available.
5. Packing, Artwork design free.
How to Use:
■ Follow carefully the instructions given in the machine handbook.
■ Never fit a diamond dish/cup wheel which is too loose or too tight on the flange.
■ Tighten only with the tool supplied with the machine.
■ Ensure the wheel is properly gripped to prevent slippage, but do not tighten with excessive force. Never use a hammer.
■ Keep flanges and screw threads clean and free of burrs and rust.
■ Replace distorted or damaged flanges before fitting the wheel.
For your Safety:
We recommends the use of following personal protective equipment:
■ Eye protection
■ Ear protection (ear sets)
■ Hand protection (gloves)
■ Lung protection (dust mask, also called respirator)
Important Note:
Never remove the protective machine guard and make sure it is properly adjusted to deflect debris away from you.
Ensure that no other person is at risk, especially near the machine while working.
