Tungsten Carbide Masonry Drill Bits

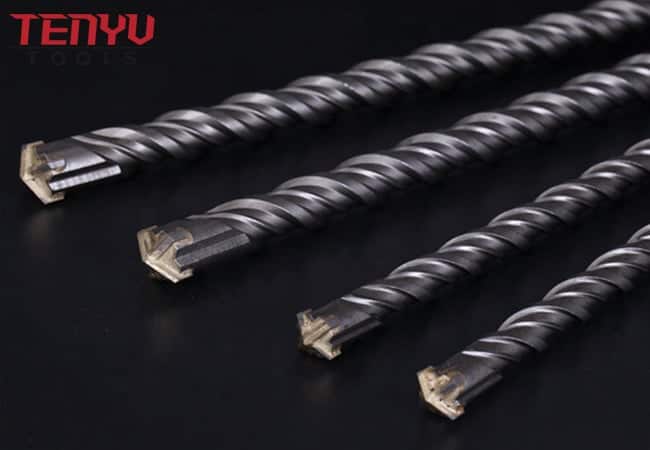

7pcs SDS Max Rotary Electric Hammer Carbide Drill Bit Set with Cross Tip Provides Fast Masonry Drilling
- Compact head for fast dust removal and longer life.
- Active-centering tip provides quick, accurate starts.
- A fully supported carbide head gives longer life and cleaner, more concentric holes for better fixing retention.
- Provides fast concrete masonry drilling.

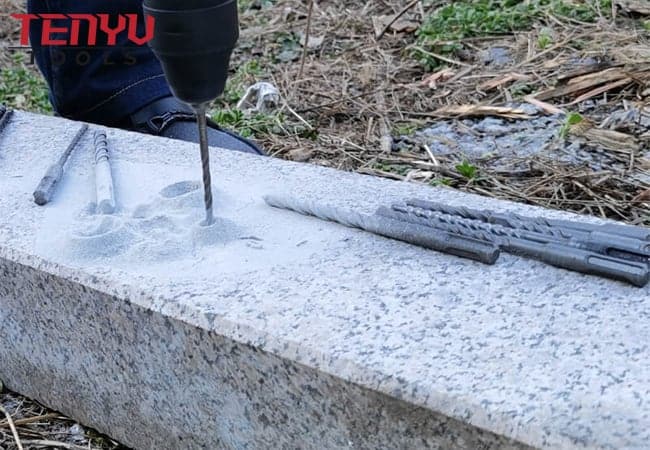

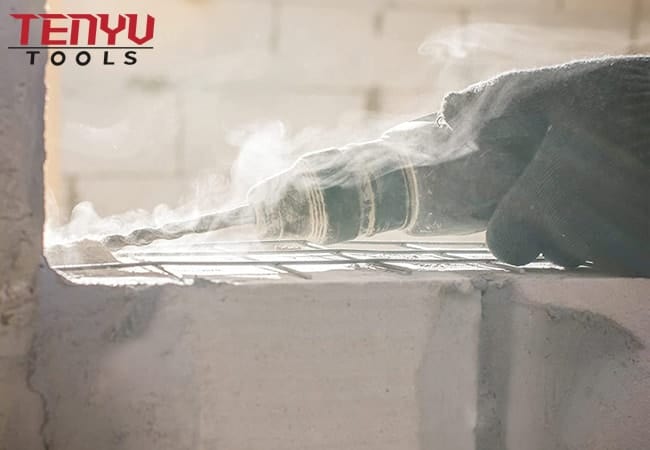

- Drilling holes in masonry concrete, brick, or blockwork.
- Product Details
- Factory
- Material
| Product Description | ||||
| More Choice For You: Home > SDS Hammer Drill Bit | ||||
| Product Name | 7pcs SDS Max Rotary Electric Hammer Carbide Drill Bit Set with Cross Tip Provides Fast Masonry Drilling | |||
| Body Material | 40Cr Steel with Heat Treatment | |||
| Tip Material | Tungsten Carbide | |||
| Process | Milled Flutes and Welded Tip | |||

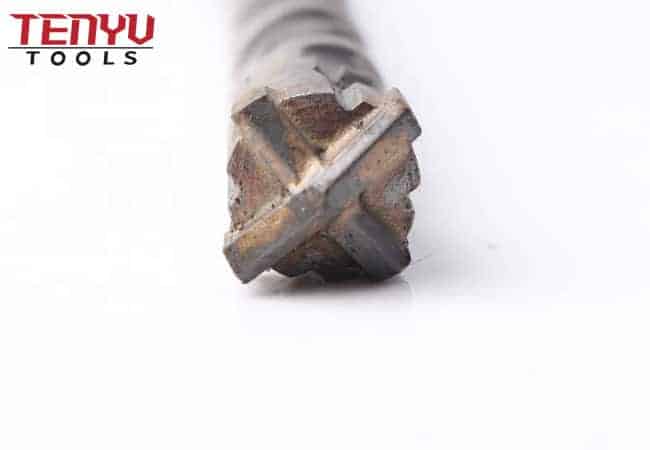

| Tip Type | Cross Tip 4 Cutters (We Also Have Single Tip, Centric Tip, X Head) | |||

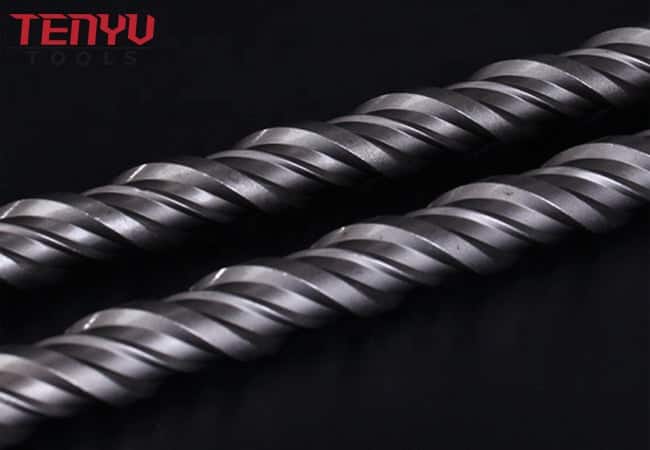

| Flute Type | S4 Flute (We Also Have L Flute, U Flute, 4 Flute) | |||
| Shank | SDS Max Shank (We Also Have SDS Plus Shank) | |||
| Size | 8*110mm – 50*1320mm (5/16” * 4” – 2” * 52” ) | |||
| Surface Finish | Sand Blasted | |||
| Package | One Piece in One PVC Pouch or Plastic Hanger or PVC Tube or PVC Double Blister | |||
| Product Size | |||||
| Diameter | Flute Length | Overall Length | Diameter | Flute Length | Overall Length |
| mm | mm | mm | Inch | Inch | Inch |
| 8.0-20.0 | 100 | 220 | 5/16″-1-1/4″ | 4″ | 9″ |
| 8.0-40.0 | 160 | 280 | 5/16″-1-3/4″ | 6″ | 11″ |
| 8.0-40.0 | 220 | 340 | 5/16″-1-3/4″ | 9″ | 14″ |
| 8.0-40.0 | 250 | 370 | 5/16″-1-3/4″ | 10″ | 15″ |
| 10.0-40.0 | 280 | 400 | 3/8″-1-3/4″ | 11″ | 16″ |
| 12.0-40.0 | 385 | 505 | 7/16″-1-3/4″ | 15″ | 20″ |
| 14.0-40.0 | 420 | 540 | 1/2″-1-3/4″ | 17″ | 22″ |
| 16.0-40.0 | 450 | 570 | 5/8″-1-3/4″ | 18″ | 23″ |
| 16.0-40.0 | 800 | 920 | 5/8″-1-3/4″ | 32″ | 37″ |
| 16.0-50.0 | 1200 | 1320 | 5/8″-2″ | 47″ | 52″ |
| * Custom-tailor would be available against customers’ requirements | |||||
