Best Masonry Bits

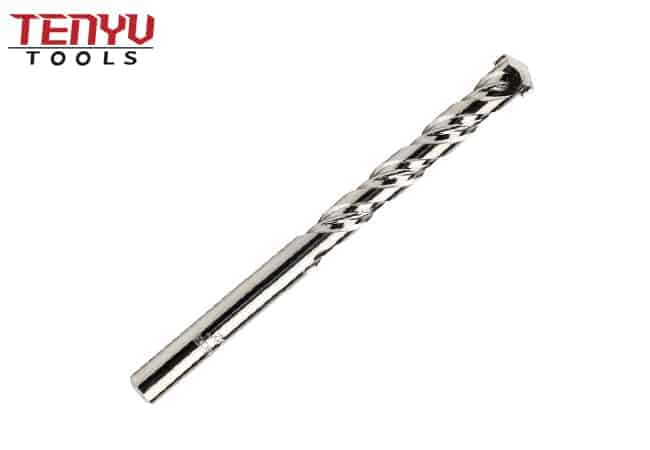

Nickel Plated S4 Flute Carbide Tipped Masonry Drill Bit Set in Plastic Box for Concrete Brick Masonry Drilling

1. Body Material:Carbon Steel with Heat Treatment

2. Tip Material:Tungsten Carbide

3. Process: Milled Flutes and Welded Tip (Auto Welded Tip is available )

4. Shank: Round Shank

5. Flute Type: S4 Flute

6. Surface Finish: Nickel Plated













Product Description
More Choice For You: HomeMasonry Drill Bit
Product Name
Tungsten Carbide Tipped Universal Construction Chrome Plated S4 Flute Masonry Drill Bit for Concrete Brick Drilling
Body Material
Carbon Steel with Heat Treatment
Tip Material
Tungsten Carbide
Process
Milled Flutes and Welded Tip
Shank
Round Shank (We Also Have Quick change hex shank, Three-Flat shank, Double R hex shank, Tapcon shank, Flexible shank, Extra-long shank)
Flute Type
S4 Flute (We Also Have L Flute, U Flute, R Flute, Fast Spiral Flute)
Surface Finish
Chrome Plated (We Also Have Sandblasted, Zinc plated, Copper, plated, Black & Bright)
Package
One Piece in One PVC Pouch Or In One PVC Tube or PVC Double Blister or Skin Card
Feature

1. Strong carbide tip, tough and durable to penetrate multi-materials.

2. Special design flute helps to fast remove dust and material when drilling.
3. Chrome Plated Coated, anti-rusted, and reduce friction for fast drilling speed.
4. Round shank for use in corded and cordless rotary drills.
5. For drilling in concrete, reinforced concrete, brick, block, and masonry, etc..
Product Size
Diameter Flute Length Overall Length Diameter Flute Length Overall Length
mm mm mm Inch Inch Inch
3 30 70 1/8″ 1-1/2″ 3″
4 40 75 5/32″ 4″ 6″
5 50 85 3/16″ 2″ 3-1/2″
6 60 100 3/16″ 4-1/2″ 6″
7 60 100 1/4″ 2″ 4″
8 80 120 1/4″ 4″ 6″
9 80 120 1/4″ 8″ 12″
10 80 120 5/16″ 2-1/2″ 4-3/4″
11 90 150 5/16″ 4″ 6″
12 90 150 5/16″ 8″ 12″
13 90 150 3/8″ 4″ 6″
14 90 150 3/8″ 8″ 12″
15 90 150 7/16″ 4″ 6″
16 90 150 1/2″ 4″ 6″
17 100 160 1/2″ 8″ 12″
18 100 160 5/8″ 3″ 6″
19 100 160 5/8″ 8″ 12″
20 100 160 3/4″ 3″ 6″
21 100 160 3/4″ 8″ 12″
22 100 160 7/8″ 3″ 6″
23 100 160 7/8″ 8″ 12″
24 100 160 1″ 3″ 6″
25 100 160 1″ 8″ 12″
* Custom-tailor would be available against customers’ requirements



1. Applicated in Bricks, Concrete, Ceramic Tile, Bricks, Granite, Stones.

2. Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling. increases strength and durability.

3. Premium carbon steel with heat treatment improves core strength for maximum durability and extended life.

4. Copper braze material gives high heat resistance for reduced tip loss.

5. R flute ensures fast, efficient removal of drilling dust and debris to increase speed and prevent clogging.

6. Triangle Shank for use in corded and cordless rotary drills.

1. Widen teeth segments for quick material removal
2. Optimized bond and formula for longer life
3. Optimized segment height minimizes dust and debris
4. Surface finishing on concrete, screed, and natural stone



1. Suitable for grinding machines and angle grinders
2. Other sizes are available upon your request.
3. We have a strict quality control system, to ensure quality stable.
4. The inspection report provided available.
5. Packing, Artwork design free.



How to Use:

■ Follow carefully the instructions given in the machine handbook.
■ Never fit a diamond dish/cup wheel which is too loose or too tight on the flange.
■ Tighten only with the tool supplied with the machine.
■ Ensure the wheel is properly gripped to prevent slippage, but do not tighten with excessive force. Never use a hammer.
■ Keep flanges and screw threads clean and free of burrs and rust.
■ Replace distorted or damaged flanges before fitting the wheel.

For your Safety:

We recommends the use of following personal protective equipment:

■ Eye protection
■ Ear protection (ear sets)
■ Hand protection (gloves)
■ Lung protection (dust mask, also called respirator)

Important Note:

Never remove the protective machine guard and make sure it is properly adjusted to deflect debris away from you.
Ensure that no other person is at risk, especially near the machine while working.
