SDS Shank Drill Bit
Tungsten Carbide Single Tip U Flute SDS Plus Drill Bits with Hex Position Shank for Brick Stone Concrete and Masonry Drilling

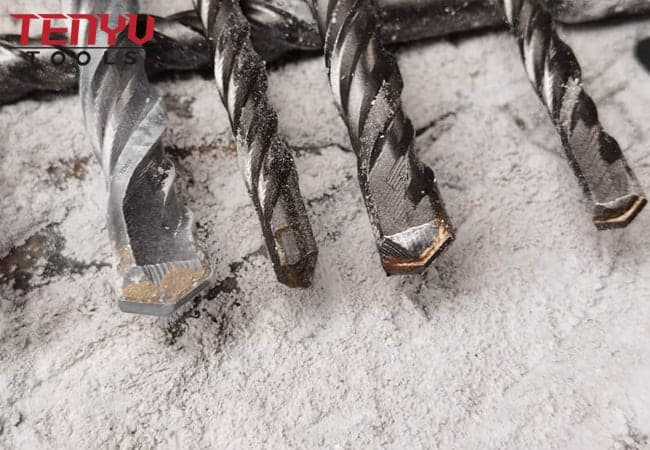

- Rock carbide tips for longer bit life.
- Ensure fast cut speeds and accurate holes.
- Compatible with all SDS Plus sized rotary hammer drills.
- Allows material to quickly exit the hole.

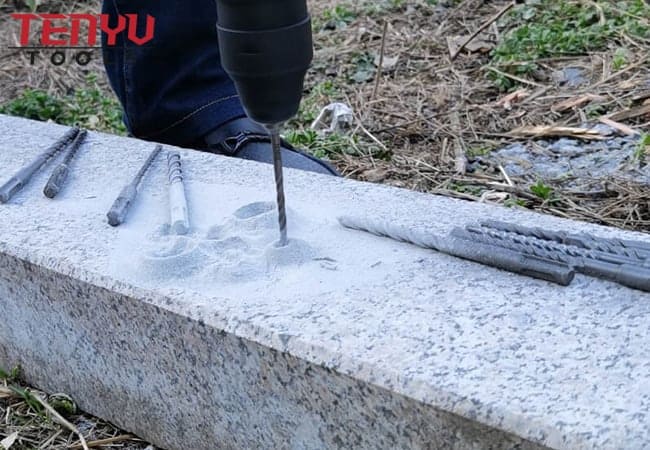

- Designed to work in masonry applications; brick, stone, concrete, block, stucco, etc.
- Product Details
- Factory
- Material
|
Product Description
|
||||
|
More Choice For You: Home > SDS Hammer Drill Bit
|
||||
|
Product Name
|
Tungsten Carbide Single Tip U Flute SDS Plus Drill Bits with Hex Position Shank for Brick Stone Concrete and Masonry Drilling
|
|||
|
Material
|
40Cr Steel with Heat Treatment
|
|||
|
Process
|
Milled Flutes and Welded Tip
|
|||
|
Tip Type
|
Single Tip (We Also Have Cross Tip 4 Cutters, Centric Tip)
|
|||
|
Flute Type
|
U Flute (We Also Have S4 Flute, L Flute, V Flute, Double Flute)
|
|||
|

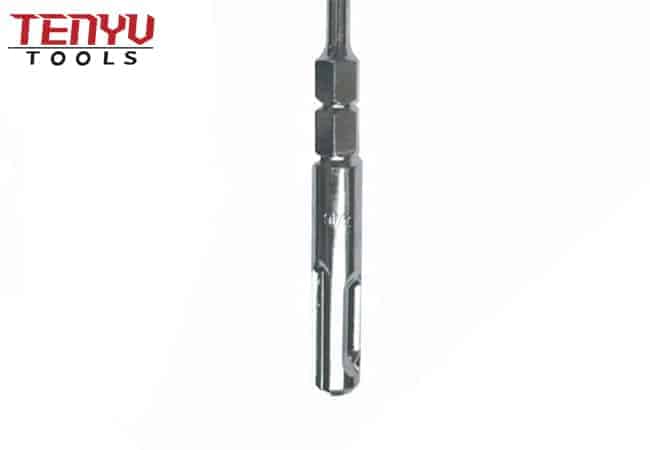

Shank
|
SDS Plus Shank (We Also Have SDS Max Shank)
|
|||
|
Package
|
One Piece in One PVC Pouch or Plastic Hanger or PVC Tube or PVC Double Blister
|
|||
| Product Size | |||||
| Diameter | Flute Length | Overall Length | Diameter | Flute Length | Overall Length |
| mm | mm | mm | Inch | Inch | Inch |
| 4.0-10.0 | 50 | 110 | 5/32″-3/8″ | 2″ | 4″ |
| 4.0-16.0 | 100 | 160 | 5/32″-5/8″ | 4″ | 6″ |
| 5.0-26.0 | 150 | 210 | 3/16″-1″ | 6″ | 8″ |
| 6.0-26.0 | 200 | 260 | 1/4″-1″ | 8″ | 10″ |
| 6.0-26.0 | 250 | 310 | 1/4″-1″ | 10″ | 12″ |
| 6.0-26.0 | 290 | 350 | 1/4″-1″ | 12″ | 14″ |
| 6.0-26.0 | 350 | 410 | 1/4″-1″ | 10″ | 12″ |
| 8.0-30.0 | 390 | 450 | 5/16″-1-1/8″ | 12″ | 14″ |
| 8.0-30.0 | 540 | 600 | 5/16″-1-1/8″ | 14″ | 16″ |
| 10.0-30.0 | 740 | 800 | 3/8″-1-1/8″ | 16″ | 18″ |
| 10.0-30.0 | 940 | 1000 | 3/8″-1-1/8″ | 22″ | 24″ |
| 10.0-40.0 | 1140 | 1200 | 3/8″-1-3/4″ | 24″ | 26″ |
| * Custom-tailor would be available against customers’ requirements | |||||
